High Speed Camera for Sports & Entertainment
Sports analysis make easy
QDCAM 4K Sport Camera
4xFHD and UHD in one system
QDCAM is supporting FHD 240/200fps and UHD 60/50 fps video formats. QDCACM can be used for UHD high resolution production or high speed sports shooting with one system.
Global shutter CMOS image sensor
QDCAM is equipped with global shutter CMOS image sensor which is to avoid the rolling shutter distortion of quick moving objects.
QDCAM
High-Speed shooting: 1920×1080/239.8p, 200p

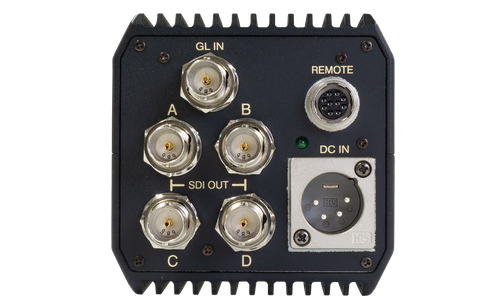

Continuous 4X high-speed video for smooth slow-motion replay or accurate sports analysis. Quad link of SDI can be connected to major slow-motion recording/players such as EVS, Avid etc.
A new synchronization system
A patent pending technology for multiple cameras exposure timing synchronization. Suitable as a multi-angle view system or sports judgement system.
Optical transmission option using SMTPE opt-camera cable
Optical transmission option allows it to be used for sports broadcasting in a stadium or an arena.
High resolution shooting: 4096×2160/24p, 3840×2160/60p,50p
Use for 4K cinema production or UHD video production.
Fan-less camera
no noise, no vibration
Fan-less thermal control. No fan noise.

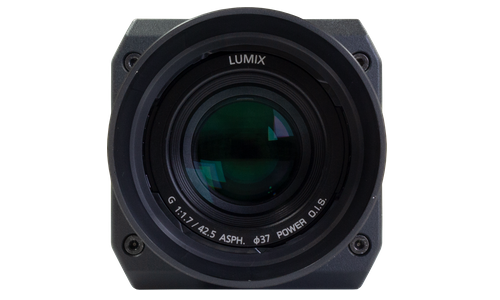

Micro four thirds lens mount
High quality picture lenses with various focal lengths can be used. Also, remote control of Iris and Focus are available.

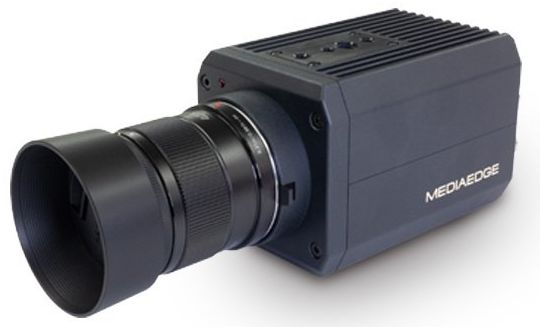

QDCAM
High-speed 4K Sport and Entertainment camera
This box camera supports FHD 4x super slow-motion shooting. It is equipped with a global shutter CMOS sensor and is compatible with Micro Four Thirds lenses

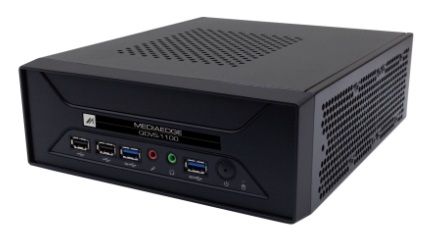

QDVS-1100
Slow motion with record/playback switching
This is a slow server that can record 4x speed video shot with a QDCAM box camera on the main memory, and can perform delayed playback, slow playback, frame forward/frame reverse display, and save slow motion video files. By using it in conjunction with a QDCAM box camera, you can record, play back, and save files of high-speed video for sports broadcasting and sports analysis at an affordable price. Since it is designed and developed in-house, it can be customized according to your needs.

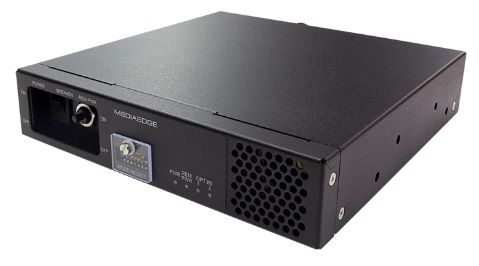

ME-BXC-BU100/100T
Optical transmission device - BASE UNIT
This is an optical transmission device that also supports QDCAM. This base unit ME-BXC-BU100/100T is used together with the cam site unit ME-BXC-CU100/100T to transmit signals via an optical camera cable. By using it in combination with QDCAM, it is possible to transmit without any deviation in imaging timing caused by differences in cable length. It can also be used as a general-purpose optical transmission device.

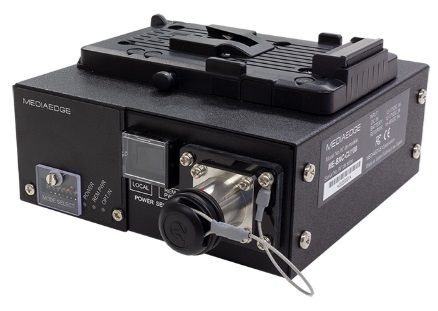

ME-BXC-CU100/100T
Optical transmission device - CAM SITE UNIT
This is an optical transmission device that also supports QDCAM. This cam site unit ME-BXC-CU100/100T is used with the base unit ME-BXC-BU100/100T to transmit signals via an optical camera cable. By using it in combination with QDCAM, it is possible to transmit without any deviation in imaging timing caused by differences in cable length. It can also be used as a general-purpose optical transmission device.
DEMONSTRATION VIDEOS
