Weapon Test, Tracking projectiles and Blast analysis
Highspeed Camera series
Some products are under export control and regulation
i-Speed iX7
High Resolution and high performance rugged outdoor camera. Full sensor resolution 2072 x 1536 pixels at 8512 fps, Up to 2,450,000 fps. Battery Operated. SSD storage. More resolution means more accuracy in motion analysis and more video details.
I-Speed iX5
High Resolution and high performance rugged outdoor camera. Full sensor resolution 1920 x 1080 pixels at 6382 fps, Up to 1,000,000 fps. Battery Operated. SSD storage. More resolution means more accuracy in motion analysis and more video details.
L-VIT Platinum
1920 x 1080 pixels @ 3500 fps. Shock tolerance up to 150G Hi-G. Built-in trigger sensor, SSD and CFAST media storage. Suitable for crash test and harsh environment. Shock Tolerance camera.
AOS N-EM Platinum
Airborne camera with MIL-810-STD and MIL-461 specification. 1920 x 1080 pixels @ 1000 fps. For studying of launching payload such as store separation, air rocket, use on drone, etc
It will survive in extreme environment.
- 64GB flash memory
- removable CFast Flash disk
- HD-SDI output
- 8 or 16GB recording memory
DATASHEET
TOUGH Highspeed Camera series

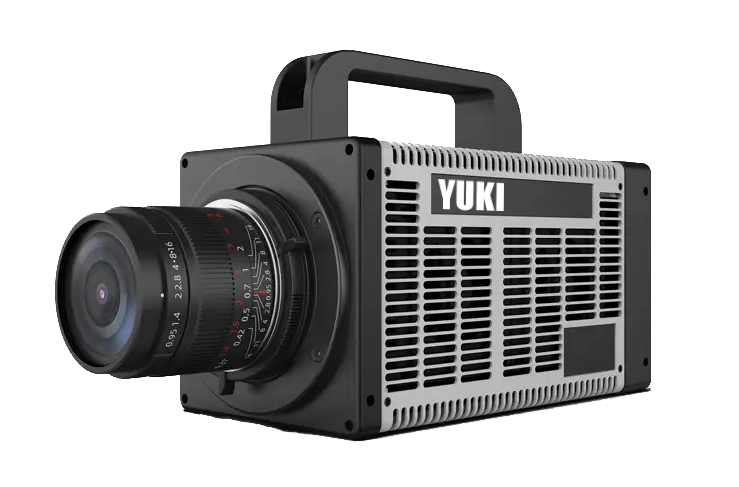

YUKI S2 series
1920x1080 @ 3,200fps Max Recording Speed: 300,000fps
YUKI S2 series is compact, tough highspeed camera with SDI vide output. Available in 3 models, YUKI S2 Series offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 2TB recording memory and data interface at up to 10-Gigabit ethernet speed.
S-201: 1920 x 1080 @ 1,200fps, up to 110,000 fps
S-202: 1920 x 1080 @ 2,200fps, up to 205,000 fps
S-203: 1920 x 1080 @ 3,200fps, up to 300,000 fps
YUKI M1 series
1280 x 1024 @ 8,000fps
Max Recording Speed: 550,000fps
YUKI M1 series is a tough highspeed camera with impressive performance and specifications. Available in 4 models, YUKI M1 Series offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 4TB recording memory, data interface at up to 10-Gigabit ethernet speed and a minimum exposure time of 100 nano-second.
M-101: 1280 x 1024 @ 1,000fps, up to 70,000 fps
M-103: 1280 x 1024 @ 3,000fps, up to 200,000 fps
M-105: 1280 x 1024 @ 5,000fps, up to 350,000 fps
M-108: 1280 x 1024 @ 8,000fps, up to 550,000 fps
YUKI H1 series
1280 x 1024 @ 15,800fps Max Recording Speed: 1,150,000fps
Tough ultra highspeed camera with impressive performance and specifications, YUKI H1 series is available in 3 models, it offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 20TB recording memory, data interface at up to 10-Gigabit ethernet speed and a minimum exposure time of 100 nano-second.
H-109: 1280 x 1024 @ 9,500fps, up to 705,000 fps
H-113: 1280 x 1024 @ 13,600fps, up to 1,000,000 fps
H-116: 1280 x 1024 @ 15,800fps, up to 1,150,000 fps
IR Thermal MWIR Highspeed Camera series
Some products are under export control and regulation
Spark-IR
640 x 512 pixels @ 220Hz, up to 4000 fps. Low cost. Blackbody free permanent calibration up to 150 degree C. (2500 C option).
HDR-IR, High Dynamic Range
640 x 512 pixels @ 355Hz, up to 4980 fps. 16-bit dynamic range. Blackbody free permanent calibration, up to 2500 degree C. Suitable for imaging flare, explosion, etc.
Multi-Spectral IR camera
640 x 512 pixels @ 355Hz, up to 4980 fps. 8-channels multi-spectral analysis. Enhanced Dynamic range (EHDR). High Sensitivity. Automatic Exposure control AEC, Up to 2500 degree C. Suitable for combustion and gas analysis.
Tracking series
Some products are under export control and regulation
Mini Flight Follower
Detect and record projectile from gun muzzle, track projectile flight. Mirror rotation with scan angle up to 100 degree. Camera recording speed up to 6400fps @ 1024 x 1024 pixels. Suitable for analysis of sabot separation, fin defect, projectile spin, target penetration etc.
Electro-Optical Video Tracking system
Tracking mount for various payload complete with visible and IR sensors; pointing accuracy 13 arc sec, Angular rate 90 degree/sec. Video tracking algorithmn, DUAL screen display. Target bearing information in real time. Flight Recording and Analysis Station. Cue to GPS device or Radar.
Ballistic accessories
Some products are under export control and regulation
Flash detector, Ruggedised, 768
Detect gun muzzle and trigger highspeed camera or any range instrumentation devices.
Ruggedised, 726-050
Detect gun muzzle and trigger highspeed camera or any range instrumentation devices
Velocity Screen
Detect projectile passing a pair of velocity screens and measure projectile speed.
Blast and Fragmentation Analysis
ARENA- Warhead fragmentation analysis
Measurement of fragments vs time, mean speed and distribution angle
Scoring system series
Some products are under export control and regulation

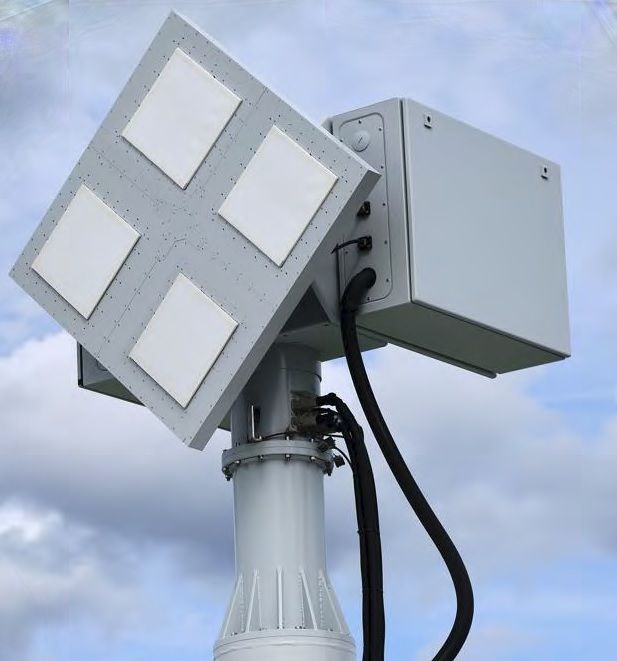

Rocket, Bomb, Artillery Scoring system
Real-time scoring result. Applicable for aircraft and attack helicpoter firing and ground target practice. Principle of operation: 3 degree radar detection and tracking at range from 250m to 5km. Accuracy of measurement as low as 1 meter.
Naval Gun Firing Scoring system
ARENA - Warhead fragmentation analysis
Analyse highspeed video footage of fragments hitting plates. Count fragments over time, fragment vs angle, mean speed vs angle
WFMS - Warhead fragmentation analysis
Real-time measurement of fragments in 3D dome space. Does not need witness plates.
Some products are under export control and regulation
