SSZN HIGH SPEED CAMERA

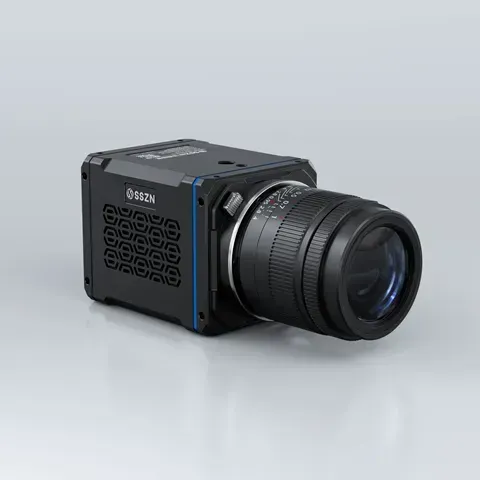

SH2 Smart Series

1920x1080 @ 3,200fps      Max Recording Speed: 300,000fps


SH2 series is compact, tough highspeed camera with SDI vide output. Available in 3 models, SH2 Series offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 2TB recording memory and data interface at up to 10-Gigabit ethernet speed.


SH2-201:   1920 x 1080 @ 1,200 fps, up to 110K fps


SH2-202:   1920 x 1080 @ 2,200 fps, up to 205K fps


SH2-203:   1920 x 1080 @ 3,200 fps, up to 300K fps



more information Request for Demo / Quote

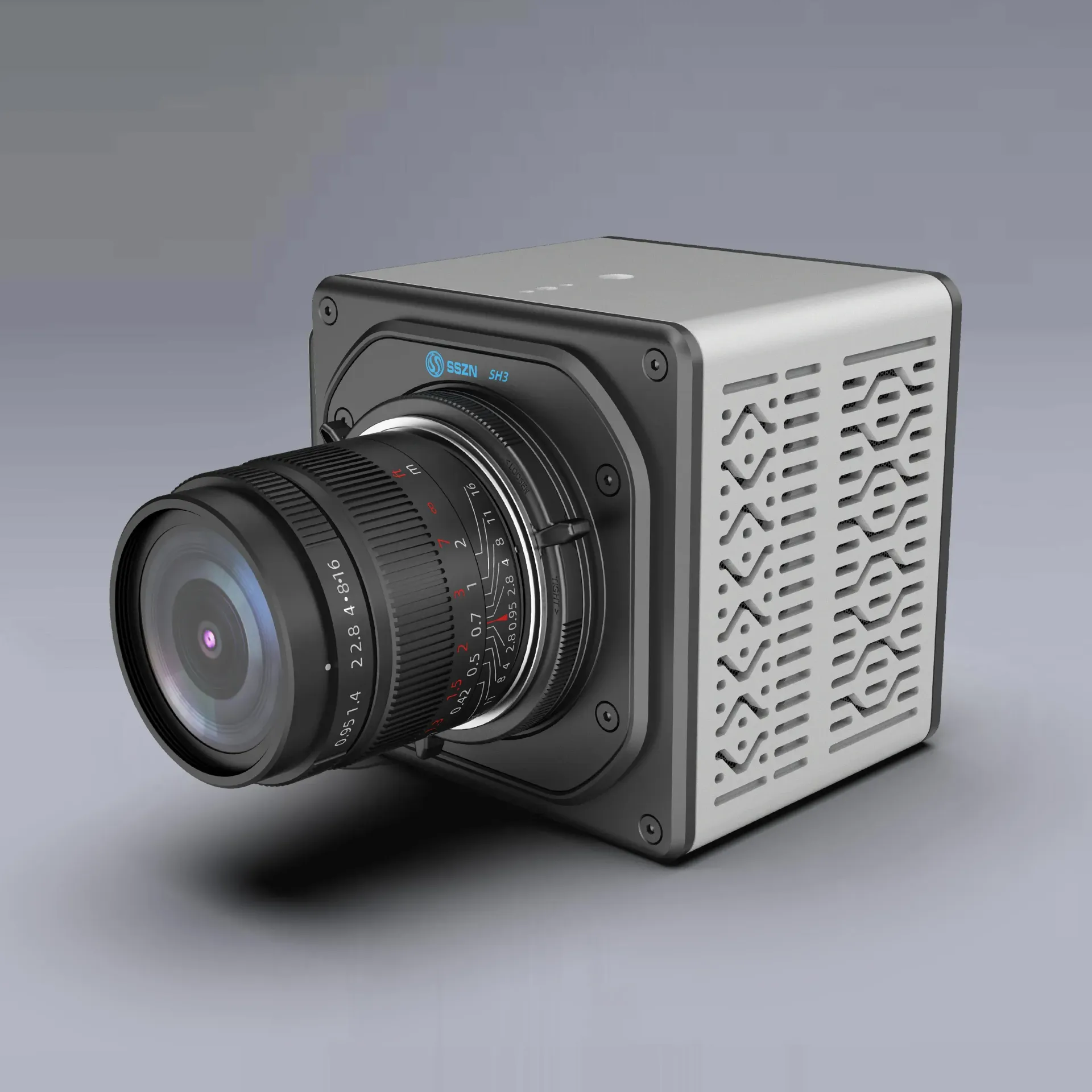

SH3 MINI Series

1280 x 1024 @ 8,000fps     Max Recording Speed: 550,000fps


SH3 series is a tough highspeed camera with impressive performance and specifications. Available in 5 models, SH3 Series offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 4TB recording memory, data interface at up to 10-Gigabit ethernet speed and a minimum exposure time of 100 nano-second.


SH3-101: 1280 x 1024 @ 1,000 fps, up to 70K fps


SH3-103: 1280 x 1024 @ 3,000 fps, up to 200K fps


SH3-105: 1280 x 1024 @ 5,000 fps, up to 350K fps


SH3-108: 1280 x 1024 @ 8,000 fps, up to 550K fps


SH3-502: 2560 x 1920 @ 2,000 fps, up to 365K fps


more information Request for Demo / Quote

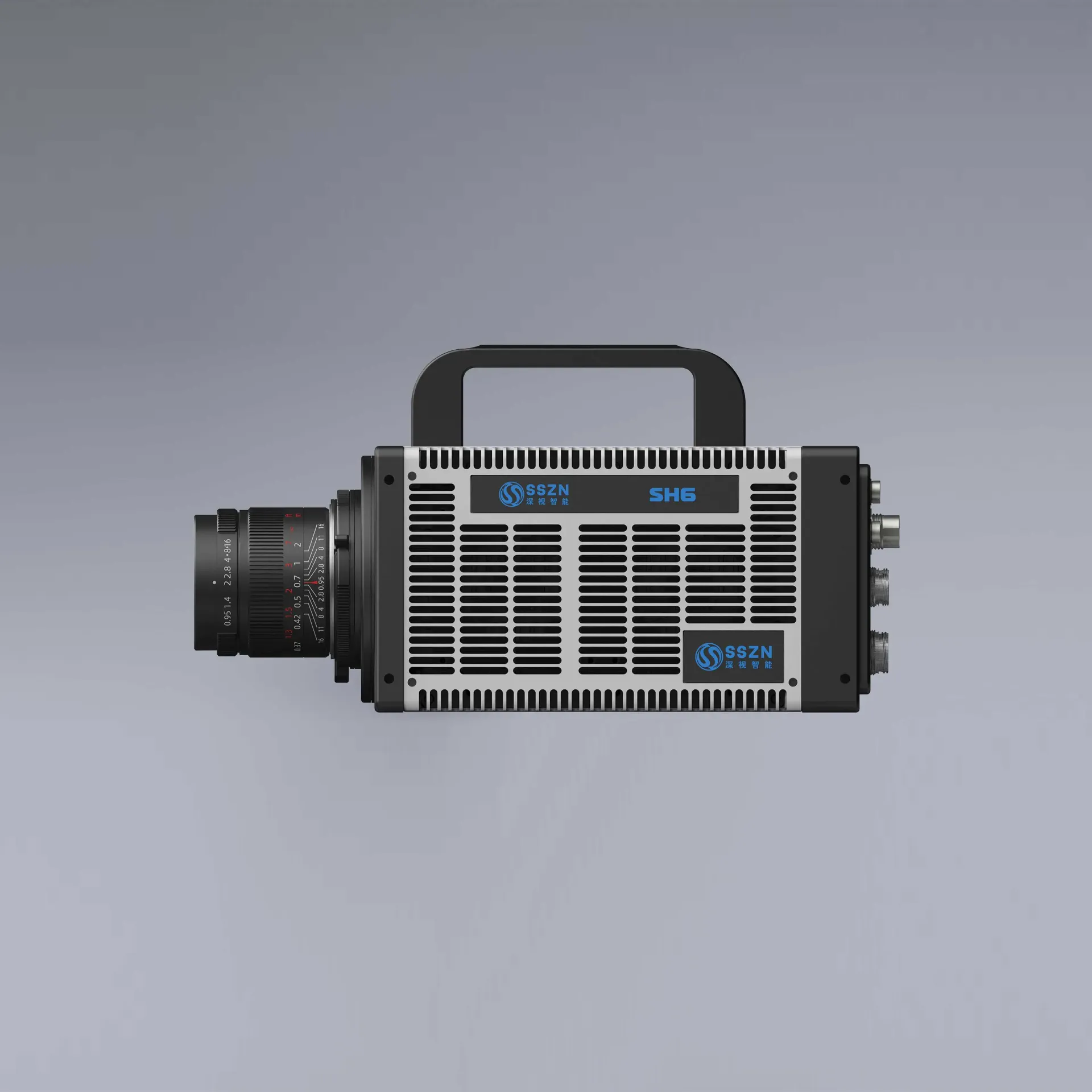

SH6 Ultra HD Series

1280 x 1024 @ 15,800fps     Max Recording Speed: 1,150,000fps


Tough ultra highspeed camera with impressive performance and specifications, SH6 series is available in 10 models, it offers 12-bit high speed recording, up to 65 degree C operating temperature, up to 20TB recording memory, data interface at up to 10-Gigabit ethernet speed and a minimum exposure time of 100 nano-second.


SH6-109: 1280 x 1024 @ 9,500 fps, up to 705K fps


SH6-113: 1280 x 1024 @ 13,600 fps, up to 1,000K fps


SH6-116: 1280 x 1024 @ 15,800 fps, up to 1,150K fps


SH6-109: 1280 x 1024 @ 9,500 fps, up to 705K fps



SH6-501: 2560 x 2016 @ 1,000 fps, up to 14K fps


SH6-502: 2560 x 2016 @ 2,000 fps, up to 25K fps


SH6-504: 2560 x 2016 @ 3,600 fps, up to 50K fps


SH6-505: 2560 x 2016 @ 4,500 fps, up to 60K fps



SH6-802: 4096 x 2048 @ 2,000 fps, up to 20K fps


SH6-2101: 5120 x 4096 @ 1,000 fps, up to 2K fps


more information Request for Demo / Quote
