REVOX Fiber Optic Illuminator
Intense illumination for high magnification and highspeed imaging

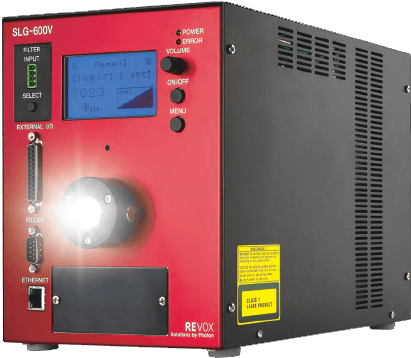

SLG-600V


ULTRA HIGH POWER FIBER OPTIC ILLUMINATOR


The SLG-600V is the latest addition to the REVOX line of High Intensity LED Fiber Optic Illuminator.


Features:


  • Maintains stable light output over a long period with a long life of 20,000 hours
  • Steady light emission, strobe light emission
  • Manual control and external control with Ethernet, parallel or serial are available
  • Up to 1,024-step illuminance control
  • about 450nm wavelength
  • Up to 7 times the output of SLG-150V
  • Fast response to trigger input
  • linear illuminance output with unique correction function
  • Monitoring of LED temperature and PCB temperature
  • Accumulate operating time and displayable on LCD
  • 5-filter Changer (optional)

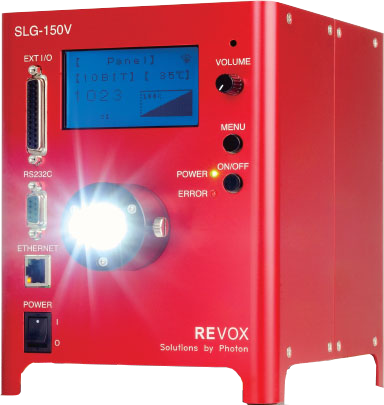

SLG-150V


HIGH POWER FIBER OPTIC ILLUMINATOR


The SLG-150V has the highest illuminance at 2,000,000 lux. It exceeds the light output of 250W metal halides light Fiber Optic Illuminator.


Features:


  • Maintains stable light output over a long period with a long life of 30,000 hours
  • Manual control and external control with Ethernet, parallel or serial are available
  • Up to 1,024-step illuminance control
  • Monitoring of LED temperature and PCB temperature
  • Accumulate operating time and displayable on LCD
  • Optimise for use with fiber bundle diameters from Ø 3 to 22 mm
  • Space saving design
  • Efficiency Cooling mechanism

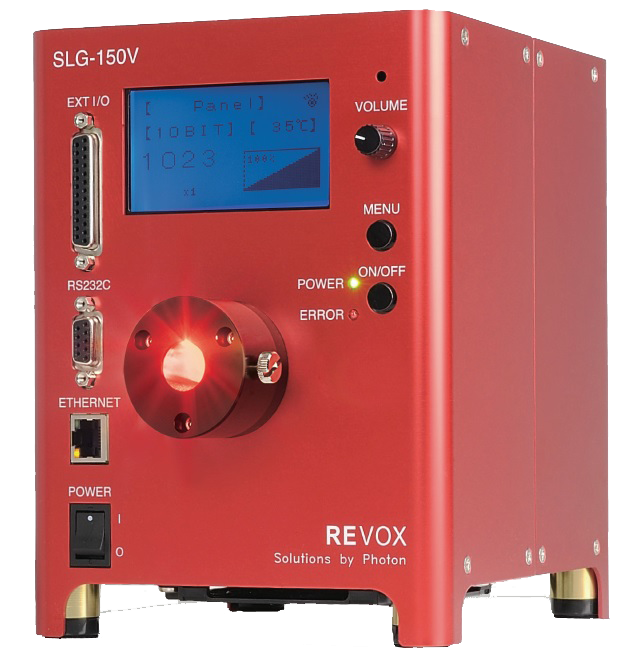

SLG-150V-NIR


HIGH POWER FIBER OPTIC ILLUMINATOR

Suitable for surface inspection and inside inspection


The SLG-150V-NIR is available in 4 kinds of light wavelength.

  850 nm

  940 nm

  1,060 nm

  1,100 nm


Features:


  • Suitable for transmissive inspection such as silicon wafer, PCB and packages.
  • Long lifetime of 30,000 hours as for 850nm/ 940nm.
  • Less damage to inspection objects as a result of lower heat than halogen illuminator.
  • Light output is stable even under harsh conditions by stabilizer function.
  • Compliant with CE marking
  • Manual control and external control with Ethernet, parallel or serial are available
  • Up to 1,024-step illuminance control
  • Monitoring of LED temperature and PCB temperature
  • Accumulate operating time and displayable on LCD
  • Space saving design
  • Efficiency Cooling mechanism
